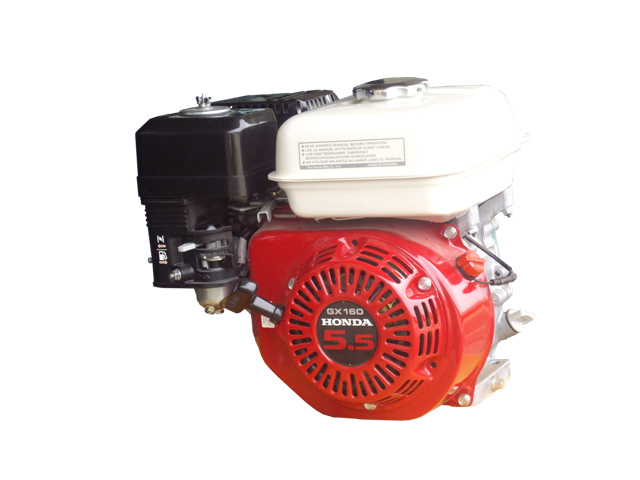

Overview of Honda  Multipurpose Engine 4.8HP - GX160H :

The Honda  Multipurpose Engine 4.8HP - GX160H Multipurpose Engine is very affordable, efficient and durable. Lubricating system: Forced splash and Oil capacity: 0.58L No need to go far get unlimited value for your money today at KARA.

Specification:

  • Type‎:‎ 4‎‐Stroke‎,‎ Overhead Valve‎,‎ single cylinder‎,‎ 25 incline
  • Total dispalcement‎:‎ 163cc3 ‎(‎9.9cu in‎)‎
  • Bore x stroke‎:‎ 68*45mm ‎(‎2.68*77in‎)‎3
  • Net power ‎(‎SAEJ1349‎)‎‎:‎ 3.5KW /4.8ps/3.600RPM
  • Max‎.‎Net power ‎(‎SAEJ1349‎)‎‎:‎ 10.0N‎‐m ‎(‎1.1kgf‎‐m‎)‎2.500rpm
  • Compression ratio‎:‎ 7.5‎(‎+/‎‐0.3‎)‎
  • Fuel consumption‎:‎ 1.0L/h
  • Cooling system‎:‎ Forced Air
  • Ignition system‎:‎ Transistorised magneto ignition
  • Ignition timing‎:‎ 25 BTDC
  • Spark plug‎:‎ BP6ES‎,‎ BPR6ES/ W20EP‎‐U‎,‎ W20EPR‎‐U
  • Carburator‎:‎ Horizontal type‎,‎ butterfly Valve
  • Air cleaner‎:‎ Semi‎‐Dry‎,‎ Oil bath‎,‎ Dual‎.‎ Silent
  • Starting system‎:‎ Recoil starter‎,‎ electric starter ‎(‎opt‎)‎
  • Stopping system‎:‎ Ignition primary circuit ground
  • Fuel used‎:‎ Unleaded gasoline
  • Fuel tank capacity‎:‎ 3.1L
  • P‎.‎T‎.‎O shaft rotation‎:‎ Counterclockwise
  • Dimension‎:‎ 312*362*335
  • Dry weight‎:‎ 15kgs
More Information
Product Name Honda Multipurpose Engine 4.8HP - GX160H
brand Honda
