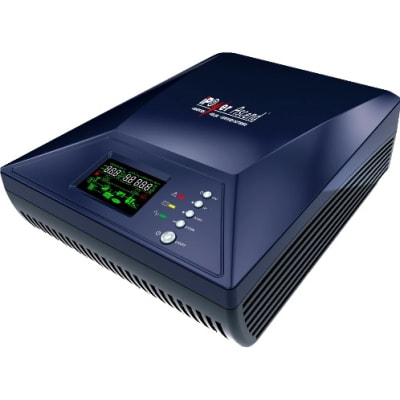

IPower Ascend Inverter – 2KVA/24V

Overview of Zinox iPower Matrix Inverter - 2KVA/24V

iPowerPlus is a unique digital smart power solutions. The IPower Plus 24V 1KVA inverter is designed to power your home, offices, appliances and precious electronics. Its compact size enables easy installation and high movability. Compared with traditional inverters in the market, this Pure Sine Wave inverter is highly portable but effective.

The IPower Plus inverter comes with an LCD display which shows detailed information about the inverter charing current, load, input sources etc. Using the buttons and display, you can also set the type of battery used.

This inverter also uses ferrite core transformers which makes it very power efficient especially as a solar inverter. iPowerPlus inverter comes with a comprehensive one year warranty.

Features

• Selectable input voltage ranges, charging current setting,
• Auto restart when AC is recovering.
• User-friendly LCD and LED indications with setting function.
• Environmental Temperature control charge management.
• Rack design & wall mounted design for flexible installation.
• Intelligent 3-stage charger control for efficient charging and preventing overcharge.
• Multiple protection: Low battery alarm, Low battery shutdown, overcharge protection, overload protection, over temperature protection, short circuit protection,Fan speed automatic adjust, Low noise.
• Smart Battery Cut off point setting.
• Buzzer alarm ON/OFF setting

Specifications

• Capacity (VA/W) 2000VA/1600W
• Nominal Battery Voltage 24VDC
• Line Mode Input Nominal Voltage 220Vac
• Voltage Range 170-280Vac (Narrow Range) 90-280Vac (Wide Range)
• Normal Frequency 50Hz or 60Hz
• Output Volatge 220Vac Frequency/ Waveform Following the Utility
• Transfer Time 20ms Typical Back up Mode
• Output Voltage 220Vac
• Frequency 50Hz or 60Hz (Auto Detection) Waveform Simulated Sine Wave
• Protection Discharge
• Over-Charged, Over-Loading, OverTemperature, Short Circuit Protection
• Battery Charger (Powered by AC) Charging Algorithim 3-Step charging
• AC Charging Mode 10A/20A
• Floating Charging Voltage 27.50±0.50V
• Overcharging Voltage 30.6V
• General Physical Dimension (D*W*H) 316mm(D)*227mm(W)*92mm(H)
• Operating Environment 0-50?C, 0%-90% relative humidity (non-condensing) Storage Environment 15?C to 55?C
• Noise Level Less than 50dB
