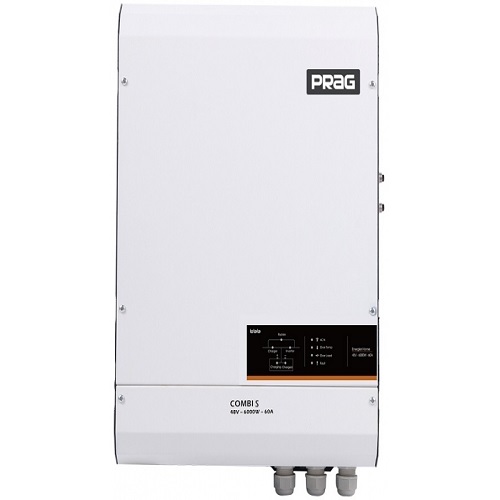

Overview of Prag Pure Sine Wave Inverter 6KW/48V:

PRAG 6KW 48V Inverter is an inverter/charger combination with high reliability providing a true sine-wave inverter, lead-acid battery charger, and AC transfer switch together. It can be connected to either solar, grid or generator to compose power system for the most demanding power backup application.

It comes with the RCC-Remote Control Console that allows for remote monitoring and controlling of the inverter meters away.

This PRAG Inverter integrates multiple functions including a powerful battery charger, true sine wave inverter and a high-speed automatic transfer switch. Its distinguishing surge capability makes it capable to power most demanding appliances such as air conditioners, water pumps, washing machines, freezers etc.

The inverter has some distinguishing features designed especially for Africa, Middle East, and South-East Asia countries where the grid is not stable and the low voltage was frequently encountered. This inverter can maximize the usage of a grid and automatically adjust its charging in accordance with the setting.

Features of Prag Pure Sine Wave Inverter 6KW/48V:

  • Bidirectional inverter with Pure Sine Wave Inverter output
  • Can be applied for power backup and solar hybrid system
  • High performance designed for all kinds of home appliances.
  • Equalize charging program available
  • Compatible with major generators in the market
  • Designed to work with weak grids
  • Designed for a tropical region with working temperature up to 60℃
  • Weak grid mode make it suitable for unstable grid
  • Outstanding peak power make it suitable for heavy load, such as air conditioner
  • PRAG Invertermulti stage charging algorithm with built in automatic temperature compensation
  • Various charging algorithm for multiple battery chemicals including AGM, GEL, Semi Traction and Traction.
  • Equalization program available for Traction and Semi-traction battery
  • Charger only functionalso available
  • GEN mode makes it compatible with majority of generators in the market.
  • Optional low voltage disconnect level

 Specifications of Prag Pure Sine Wave Inverter 6KW/48V:

  • Nominal Voltage: 48VDC
  • Cont output power at 40°C (W): 6000W
  • Cosq: 0.9 - 1
  • Overload: >150% 20s, >125% 1min, >110% 15min
  • Surge: 300%
  • Output Voltage: 230VAC or 110VAC ± 2%
  • Output frequency: 50/60Hz ± 0.1%
  • Efficiency Max: 92% - 94.8%
  • Nominal output Voltage: 48 VDC
  • Max Output current (A) - Adjustable: 60
  • AC Input voltage: Range GEN mode = 170VAC - 250VAC
  • Battery types: AGM/GEL/Flooded
  • Max output current: 60A
  • Absorption time: Variable
  • Temperature: Compensation - 4mV/°C/cell
  • Charger circuit breaker: 40A
